HPE-100S
Engine Hydraulic Pump
SPECIFICATIONS :
- Engine : Gasoline engine (HONDA)
- Operating pressure : 68.5Mpa (10,000PSI)
- Oil delivery : 2.6 liter/min. at low pressure – 0.5 liter/min. at high pressure
- Reservoir capacity : 2.2 liter
- Size : 533×350×484 mm
- Weight : 34.5kg
HPE-160
Engine Hydraulic Pump
SPECIFICATIONS :
- Engine : Gasoline engine (HONDA)
- Operating pressure : 68.5Mpa (10,000PSI)
- Oil delivery : 7.5 liter/min. at low pressure – 1.2 liter/min. at high pressure
- Reservoir capacity : 10 liter
- Size : 665×405×445 mm
- Weight : 61.0kg
HPE-160M
Engine Hydraulic Pump
SPECIFICATIONS :
- Engine : Gasoline engine (HONDA)
- Operating pressure : 68.5Mpa (10,000PSI)
- Oil delivery : 7.5 liter/min. at low pressure – 1.2 liter/min. at high pressure
- Reservoir capacity : 10 liter
- Size : 670×405×475 mm
- Weight : 56 kg
SERIES7
- Pressure sensor indicates output of each operation
- “GOOD” or “ERROR” (operation status) measured by current
- Location and time of each operation stored with GPS
- PC software connection with Bluetooth
- Operation and tool management with exclusive software
- Auto-retract or Manual-retract selectable
- Fastest operation in its class with newly developed 21.6V battery
S7G-510H
Battery Operated Crimping Tool
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram stroke : 42 mm
- Output force : 120 kN
- Size : 436 x 297 x 92 mm
- Weight : 7.1 kg (without battery)
- Battery type : 21.6V Izumi Battery
- Accessories : Battery, Charger, Shoulder Strap, Carrying Case
- *Dies are sold separately*
S7G-431H
Battery Operated Crimping Tool
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram stroke : 31 mm
- Output force : 120 kN
- Size : 413 x 301 x 92 mm
- Weight : 6.6 kg (without battery)
- Battery type : 21.6V Izumi Battery
- Accessories : Battery, Charger, Shoulder Strap, Carrying Case
- *Dies are sold separately*

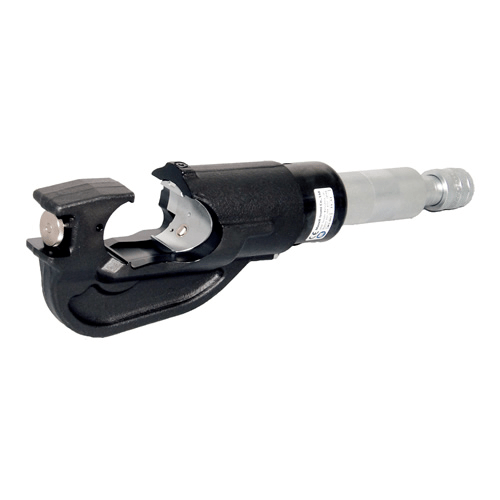

EP-431H
Remote Hydraulic Crimping Head
Accepts existing 12 ton U-type dies
Specification :
- RAM STROKE : 31 mm
- FORCE AT DIE FACE : 10.3-11.3 (Metric Ton)
- LENGTH : 340 mm
- WEIGHT : 4.6 kg
EP-510HE
Remote Hydraulic Crimping Head
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram Stroke : 42mm
- Output force : 118 kN
- Size : 420 mm
- Weight : 5.7 kg
- Accessories : Carrying Case
- Recommended Hydraulic Pump : R14E-H, HP-700A, HPE-100S

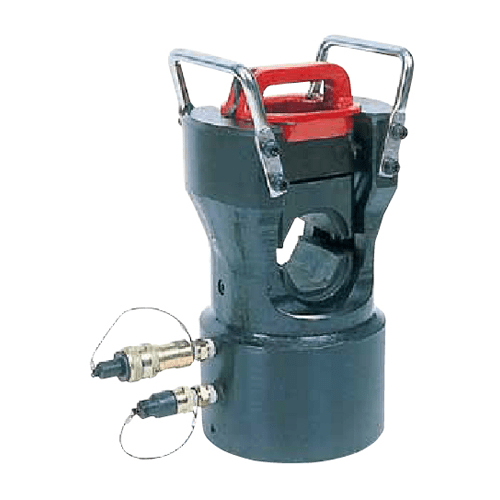

EP-100W
Remote Hydraulic Crimping Head
SPECIFICATIONS :
- Application : Crimping for Cu/Al/St Terminals, Lugs and Splices
- Range : Max. 60mm dia. Connector
- Ram Stroke : 38.5mm
- Output force : 540kN (60 US ton) with 68.5Mpa output Hydraulic Pump
- Size : 146 x 450 mm
- Weight : 22.0 kg
- Recommended Hydraulic Pump : HPE-160, HPE-160E

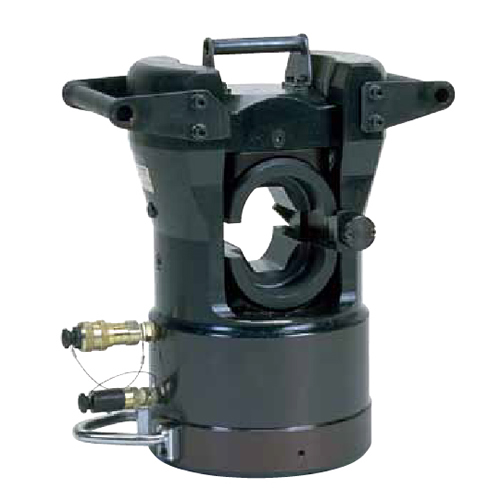

EP-100W
Remote Hydraulic Crimping Head
SPECIFICATIONS :
- Application : Crimping for Cu/Al/St Terminals, Lugs and Splices
- Range : Max. 100mm dia. Connector
- Ram Stroke : 40 mm
- Output force : 1960kN with 68.5Mpa output Hydraulic Pump
- Size : 270 x 415mm
- Weight : 86 kg
- Recommended Hydraulic Pump : HPE-160, HPE-160E
YSP-30B
HYDRAULIC CUTTERS
SPECIFICATIONS :
- Application : Cutting
- MAX INPUT PRESSURE : 700 bar
- OIL VOLUME REQUIRED : 18 cc
- OUTPUT FORCE : 6.7 (Metric Ton)
- LENGTH : 320 mm
- WEIGHT : 3.2 kg
CUTTING CAPACITY
- AI Standards : 28mm OD (240 mm2)
- CU Standards : 28mm OD (250 mm2)
- ACSR : 19 mm OD (120 mm2) (single strand steel coer)
P-60
HYDRAULIC CUTTERS
SPECIFICATIONS :
- Application : Cutting
- Range : Max. 60mm dia. Cu/Al Cables
- Output force : 79kN with 68.5Mpa output Hydraulic Pump
- Size : 410mm
- Weight : 5.2 kg
- Accessories : Carrying Case
- Recommended Hydraulic Pump : R14E-H, HP-700A, HPE-100S
P-60
HYDRAULIC CUTTERS
SPECIFICATIONS :
- Application : Cutting
- Range : Max. 105mm dia. Cu/Al Cables
- Output force : 120kN with 68.5Mpa output Hydraulic Pump
- Size : 535 mm
- Weight : 7.9 kg
- Accessories : Carrying Case
- Recommended Hydraulic Pump : R14E-H, HP-700A, HPE-100S
S-200A
Hydraulic Cutter
SPECIFICATIONS :
- Application : Cutting
- Range : Max. 20mm dia. Cu/Al/St Cables
- Output force : 39 kN
- Size : 380mm
- Weight : 2.8 kg
- Accessories : Carrying Case
S-240A
Hydraulic Cutter
SPECIFICATIONS :
- Application : Cutting
- Range : Max. 24mm dia. Cu/Al/St Cables
- Output force : 76 kN
- Size : 426 mm
- Weight : 4.0 kg
- Accessories : Carrying Case
S-320A
Hydraulic Cutter
SPECIFICATIONS :
- Application : Cutting
- Range : Max. 32mm dia. Cu/Al/St Cables
- Output force : 191 kN
- Size : 675 mm
- Weight : 9.3 kg
- Accessories : Carrying Case
S-550A
Hydraulic Cutter
SPECIFICATIONS :
- Application : Cutting
- Range : Max. 55mm dia. Cu/Al/St Cables
- Output force : 120 kN
- Size : 609 mm
- Weight : 8.1 kg
- Accessories : Carrying Case
S7G-S45M
Battery Operated Cutter
SPECIFICATIONS :
- Application : Cutting for Cu/Al/ACSR Cables
- Range : Max. 45mm dia. (Cu/Al/ACSR)
- Output force : 70 kN
- Size : 444 x 307 x 92 mm
- Weight : 6.1 kg (without battery)
- Battery : 18V Makita Li-ion Battery
- Accessories : Shoulder Strap, Carrying Case
S7G-K30YM
Battery Operated Cutter
SPECIFICATIONS :
- Application : Cutting for Cu/Al/ACSR Cables
- Range : Max. 30mm dia. (Cu/Al/ACSR)
- Output force : 60 kN
- Size : 393 x 283 x 82 mm
- Weight : 3.8 kg (without battery)
- Battery : 18V Makita Li-ion Battery
- Accessories : Shoulder Strap, Carrying Case
S7L-K105YM
Battery Operated Cutter
SPECIFICATIONS :
- Application : Cutting for Cu/Al/ACSR Cables
- Range : Max. 105mm dia. (Cu/Al)
- Output force : 120 kN
- Size : 601 x 346 x 99 mm
- Weight : 8.3 kg (without battery)
- Battery : 18V Makita Li-ion Battery
- Accessories : Shoulder Strap, Carrying Case
S7L-K105YM
Battery Operated Cutter
SPECIFICATIONS :
- Application : Cutting for Cu/Al/ACSR Cables
- Range : Max. 105mm dia. (Cu/Al)
- Output force : 120 kN
- Size : 670 x 255 x 120 mm
- Weight : 9.8 kg (without battery)
- Battery : 18V Makita Li-ion Battery
- Accessories : Shoulder Strap, Carrying Case
S7-K50M
Battery Operated Cutter
SPECIFICATIONS :
- Application : Cutting for Cu/Al/ACSR Cables
- Range : Max. 50mm dia. (Cu/Al)
- Size : 145 x 330 x 117 mm
- Weight : 2.2 kg (without battery)
- Battery : 18V Makita Li-ion Battery
- Accessories : Carrying Case
S7-K50YM
Battery Operated Cutter
SPECIFICATIONS :
- Application : Cutting for Cu/Al/ACSR Cables
- Range : Max. 50mm dia. (Cu/Al)
- Size : 145 x 380 x 117 mm
- Weight : 2.9 kg (without battery)
- Battery : 18V Makita Li-ion Battery
- Accessories : Carrying Case

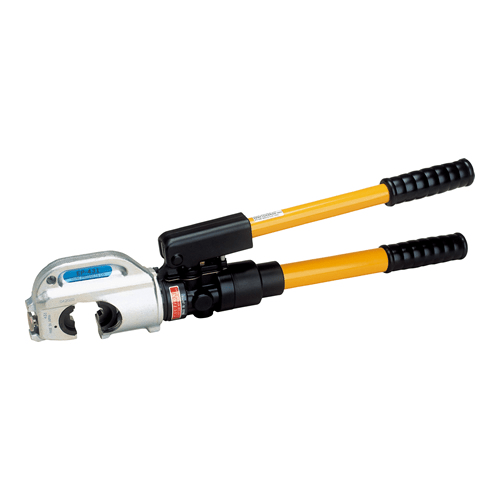

EP-431
Hydraulic Crimping Tool
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram stroke : 31 mm
- Output force : 106 kN
- Size : 610 x 150 mm
- Weight : 6.4kg
- Accessories : Carrying Case
*Dies are sold separately*

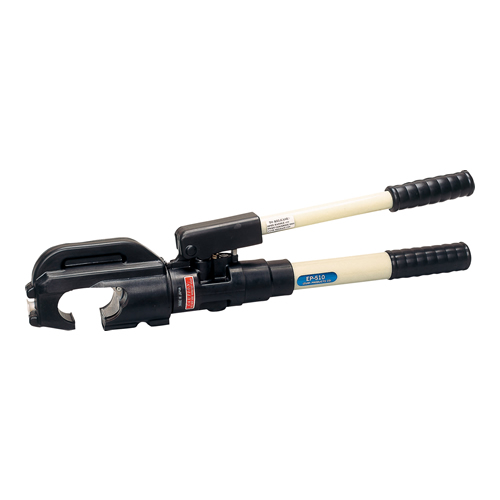

EP-510C
Hydraulic Crimping Tool
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram stroke : 42 mm
- Output force : 118 kN
- Size : 644 x 150 mm
- Weight : 8.0 kg
- Accessories : Carrying Case
*Dies are sold separately*
S7G-510R
Battery Operated Crimping Tool Type
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram stroke : 42 mm
- Output force : 120 kN
- Size : 436 x 297 x 92 mm
- Weight : 7.1 kg (without battery)
- Battery type : 21.6V Izumi Battery
- Accessories : Battery, Charger, Shoulder Strap, Carrying Case
- *Dies are sold separately*
S7G-510M
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram stroke : 42 mm
- Output force : 120 kN
- Size : 436 x 297 x 92 mm
- Weight : 7.1 kg (without battery)
- Battery type : 18V Makita Li-ion Battery
- Accessories : Shoulder Strap, Carrying Case
- *Dies are sold separately*
S7L-510M
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 400mm²
- Ram stroke : 42 mm
- Output force : 120 kN
- Size : 514 x 263 x 92 mm
- Weight : 7.5kg (without battery)
- Battery type : 18V Makita Li-ion Battery
- Accessories : Shoulder Strap, Carrying Case
- *Dies are sold separately*
S7L-610M
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 16 – 630mm²
- Ram stroke : 50 mm
- Output force : 135 kN
- Size : 530 x 263 x 94mm
- Weight : 8.2kg (without battery)
- Battery type : 18V Makita Li-ion Battery
- Accessories : Battery, Charger, Shoulder Strap, Carrying Case
- *Dies are sold separately*
S7G-60EM
SPECIFICATIONS :
- Application : Crimping for Cu/Al Terminal or Lugs
- Range : 6 – 300mm²
- Ram stroke : 18 mm
- Output force : 60 kN
- Size : 340 x 288 x 92 mm
- Weight : 4.0kg (without battery)
- Battery type : 18V Makita Li-ion Battery
- Accessories : Battery, Charger, Shoulder Strap, Carrying Case
- *Dies are sold separately*
