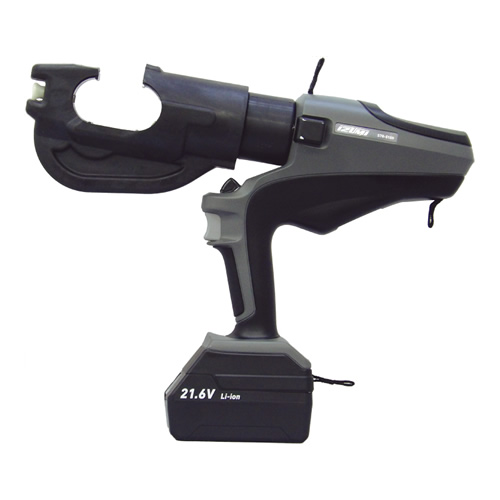

S7G-510R

Battery Operated Crimping Tool Type

SPECIFICATIONS :

• Application : Crimping for Cu/Al Terminal or Lugs
• Range : 16 – 400mm²
• Ram stroke : 42 mm
• Output force : 120 kN
• Size : 436 x 297 x 92 mm
• Weight : 7.1 kg (without battery)
• Battery type : 21.6V Izumi Battery
• Accessories : Battery, Charger, Shoulder Strap, Carrying Case
• *Dies are sold separately*

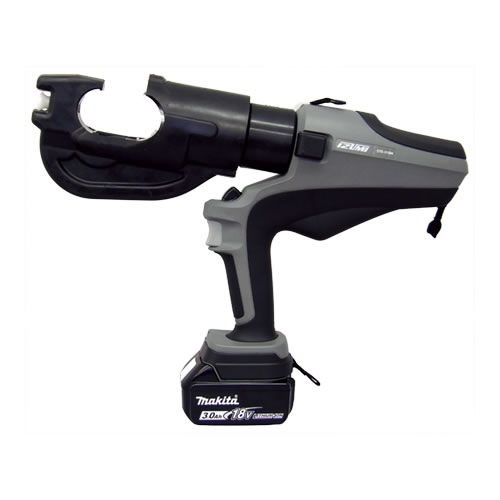

S7G-510M

SPECIFICATIONS :

• Application : Crimping for Cu/Al Terminal or Lugs
• Range : 16 – 400mm²
• Ram stroke : 42 mm
• Output force : 120 kN
• Size : 436 x 297 x 92 mm
• Weight : 7.1 kg (without battery)
• Battery type : 18V Makita Li-ion Battery
• Accessories : Shoulder Strap, Carrying Case
• *Dies are sold separately*

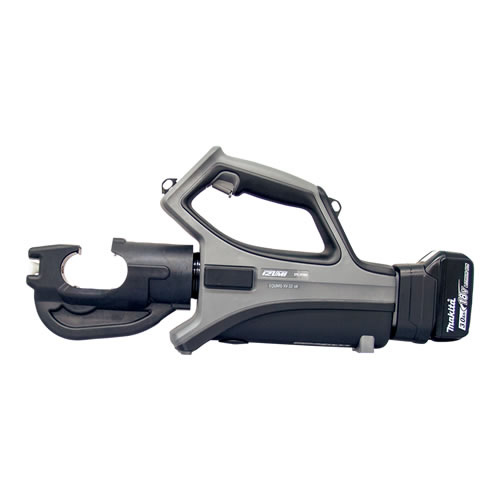

S7L-510M

SPECIFICATIONS :

• Application : Crimping for Cu/Al Terminal or Lugs
• Range : 16 – 400mm²
• Ram stroke : 42 mm
• Output force : 120 kN
• Size : 514 x 263 x 92 mm
• Weight : 7.5kg  (without battery)
• Battery type : 18V Makita Li-ion Battery
• Accessories : Shoulder Strap, Carrying Case
• *Dies are sold separately*

S7L-610M

SPECIFICATIONS :

• Application : Crimping for Cu/Al Terminal or Lugs
• Range : 16 – 630mm²
• Ram stroke : 50 mm
• Output force : 135 kN
• Size : 530 x 263 x 94mm
• Weight : 8.2kg  (without battery)
• Battery type : 18V Makita Li-ion Battery
• Accessories : Battery, Charger, Shoulder Strap, Carrying Case
• *Dies are sold separately*

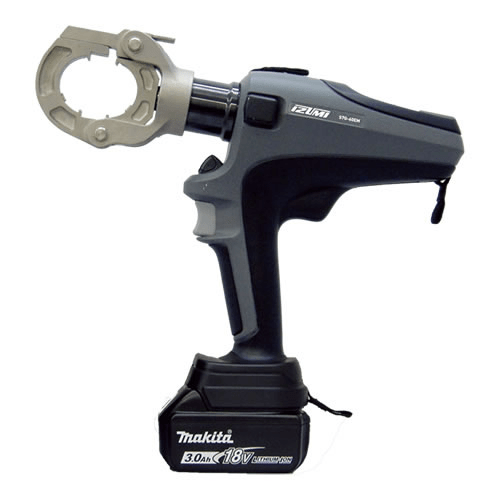

S7G-60EM

SPECIFICATIONS :

• Application : Crimping for Cu/Al Terminal or Lugs
• Range : 6 – 300mm²
• Ram stroke : 18 mm
• Output force : 60 kN
• Size : 340 x 288 x 92 mm
• Weight : 4.0kg  (without battery)
• Battery type : 18V Makita Li-ion Battery
• Accessories : Battery, Charger, Shoulder Strap, Carrying Case
• *Dies are sold separately*
