YSP-30B

HYDRAULIC CUTTERS

SPECIFICATIONS :

• Application : Cutting
• MAX INPUT PRESSURE  : 700 bar
• OIL VOLUME REQUIRED : 18 cc
• OUTPUT FORCE : 6.7 (Metric Ton)
• LENGTH  : 320 mm
• WEIGHT : 3.2 kg

CUTTING CAPACITY

• AI Standards : 28mm OD (240 mm2)
• CU Standards : 28mm OD (250 mm2)
• ACSR : 19 mm OD (120 mm2) (single strand steel coer)

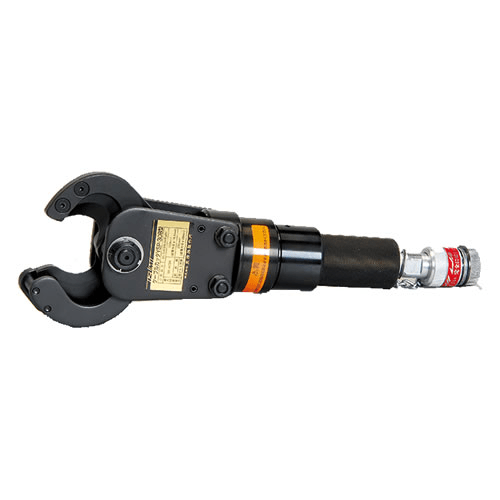

P-60

HYDRAULIC CUTTERS

SPECIFICATIONS :

• Application : Cutting
• Range : Max. 60mm dia. Cu/Al Cables
• Output force : 79kN with 68.5Mpa output Hydraulic Pump
• Size : 410mm
• Weight : 5.2 kg
• Accessories : Carrying Case
• Recommended Hydraulic Pump : R14E-H, HP-700A, HPE-100S

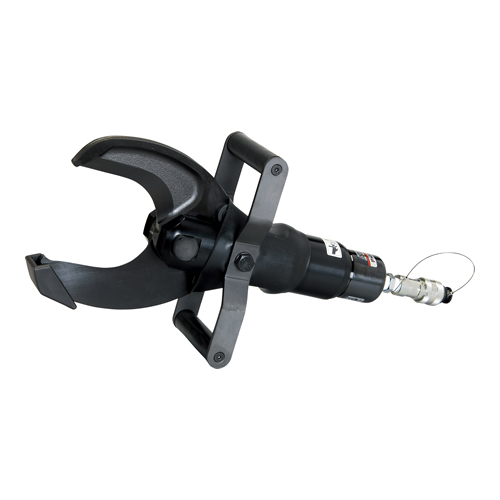

P-60

HYDRAULIC CUTTERS

SPECIFICATIONS :

• Application : Cutting
• Range : Max. 105mm dia. Cu/Al Cables
• Output force : 120kN with 68.5Mpa output Hydraulic Pump
• Size : 535 mm
• Weight : 7.9 kg
• Accessories : Carrying Case
• Recommended Hydraulic Pump : R14E-H, HP-700A, HPE-100S

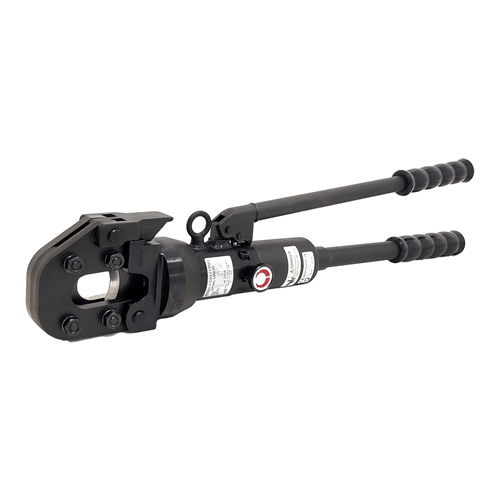

S-200A

Hydraulic Cutter

SPECIFICATIONS :

• Application : Cutting
• Range : Max. 20mm dia. Cu/Al/St Cables
• Output force : 39 kN
• Size : 380mm
• Weight : 2.8 kg
• Accessories : Carrying Case

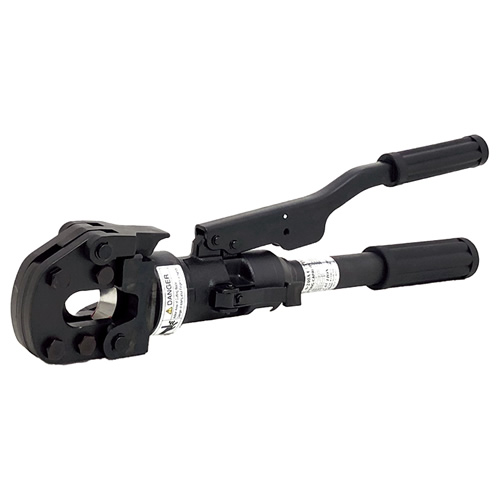

S-240A

Hydraulic Cutter

SPECIFICATIONS :

• Application : Cutting
• Range : Max. 24mm dia. Cu/Al/St Cables
• Output force : 76 kN
• Size : 426 mm
• Weight : 4.0 kg
• Accessories : Carrying Case

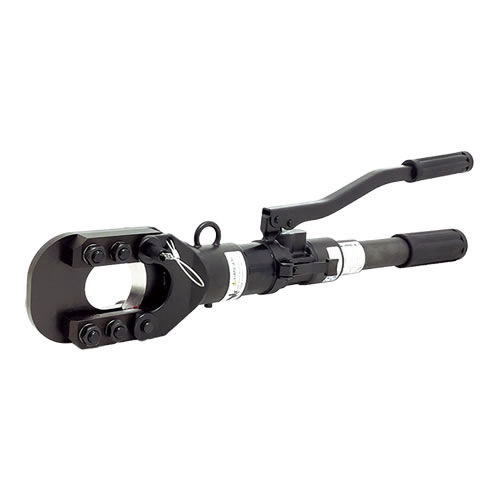

S-320A

Hydraulic Cutter

SPECIFICATIONS :

• Application : Cutting
• Range : Max. 32mm dia. Cu/Al/St Cables
• Output force : 191 kN
• Size : 675 mm
• Weight : 9.3 kg
• Accessories : Carrying Case

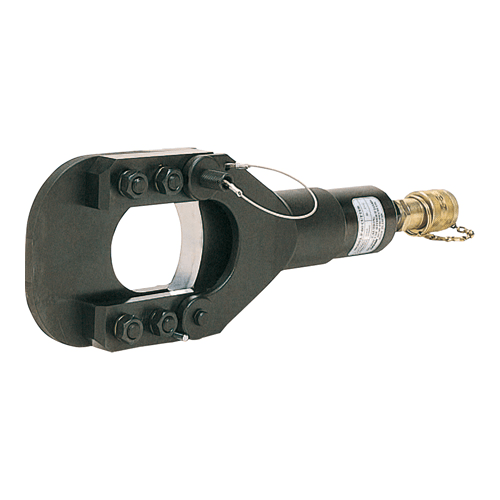

S-550A

Hydraulic Cutter

SPECIFICATIONS :

• Application : Cutting
• Range : Max. 55mm dia. Cu/Al/St Cables
• Output force : 120 kN
• Size : 609 mm
• Weight : 8.1 kg
• Accessories : Carrying Case
