SERIES7

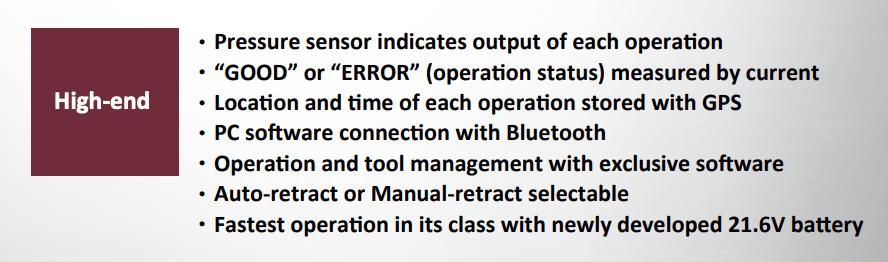

• Pressure sensor indicates output of each operation
• “GOOD” or “ERROR” (operation status) measured by current

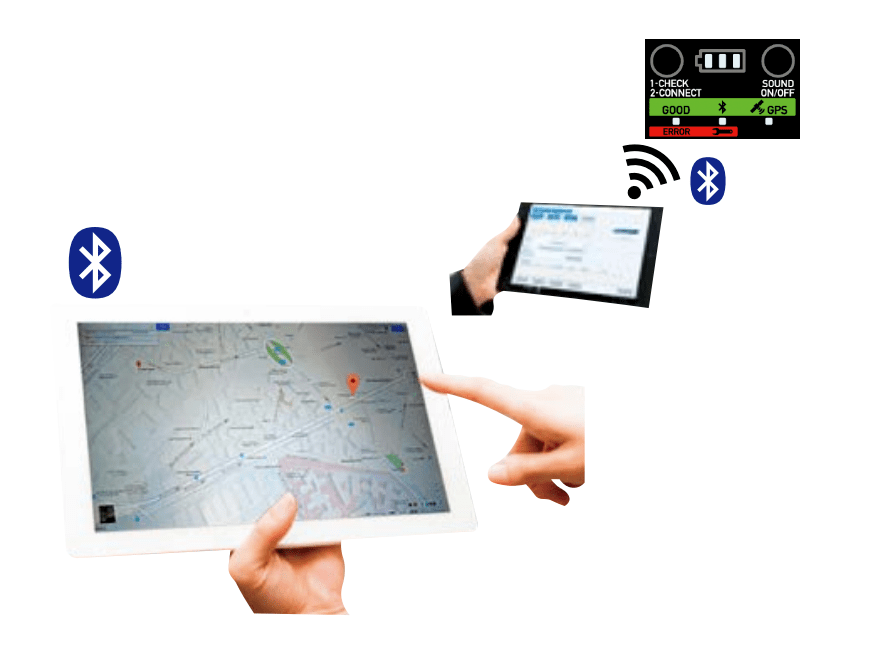

• Location and time of each operation stored with GPS
• PC software connection with Bluetooth
• Operation and tool management with exclusive software
• Auto-retract or Manual-retract selectable
• Fastest operation in its class with newly developed 21.6V battery

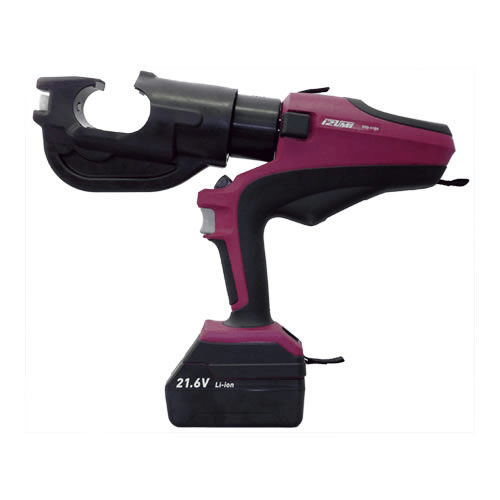

S7G-510H

Battery Operated Crimping Tool

SPECIFICATIONS :

• Application : Crimping for Cu/Al Terminal or Lugs
• Range : 16 – 400mm²
• Ram stroke : 42 mm
• Output force : 120 kN
• Size : 436 x 297 x 92 mm
• Weight : 7.1 kg (without battery)
• Battery type : 21.6V Izumi Battery
• Accessories : Battery, Charger, Shoulder Strap, Carrying Case
• *Dies are sold separately*

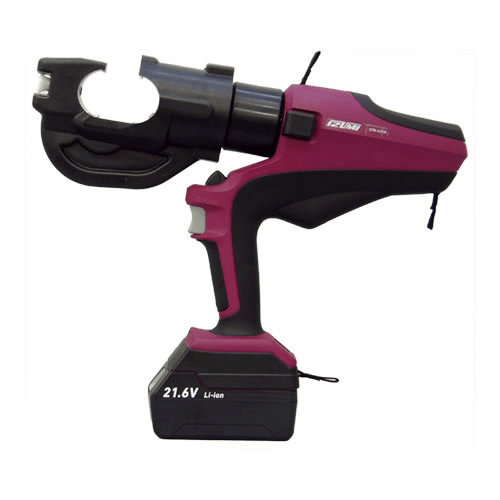

S7G-431H

Battery Operated Crimping Tool

SPECIFICATIONS :

• Application : Crimping for Cu/Al Terminal or Lugs
• Range : 16 – 400mm²
• Ram stroke : 31 mm
• Output force : 120 kN
• Size : 413 x 301 x 92 mm
• Weight : 6.6 kg (without battery)
• Battery type : 21.6V Izumi Battery
• Accessories : Battery, Charger, Shoulder Strap, Carrying Case
• *Dies are sold separately*
